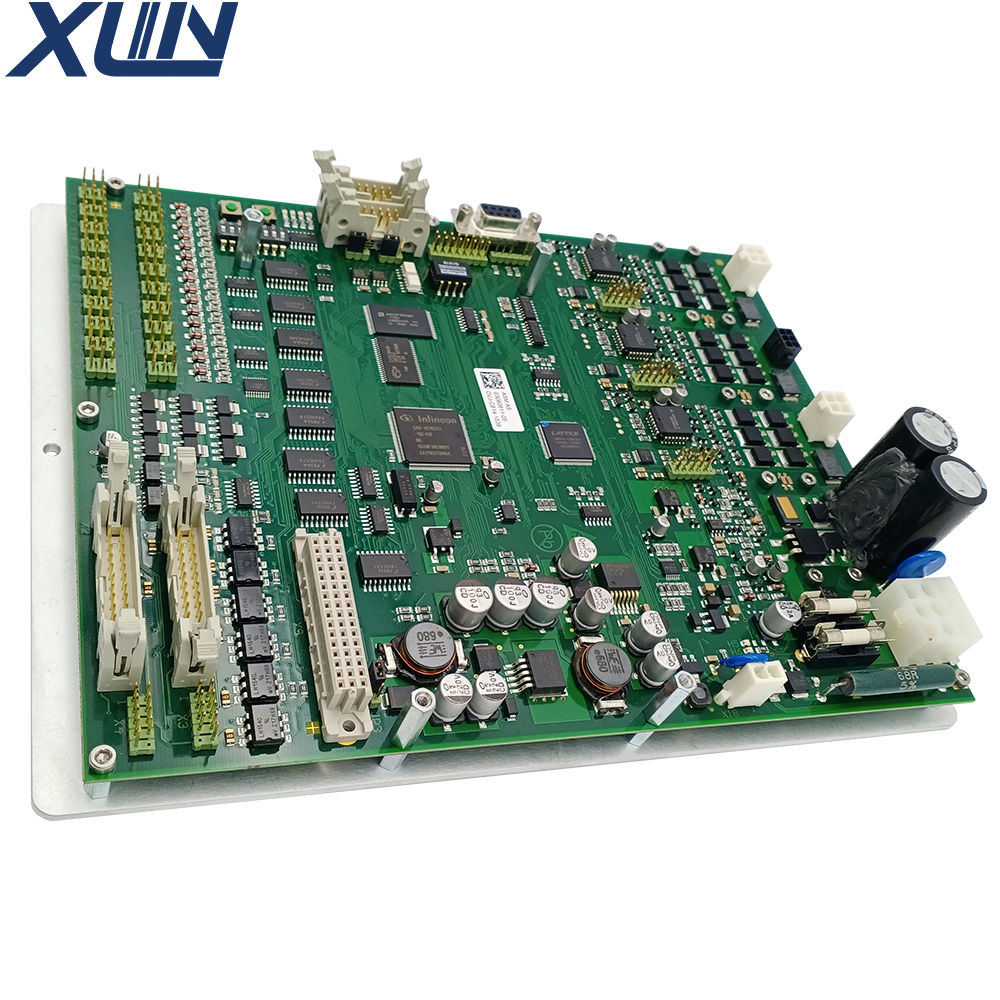

Original new ASM SMT SIPLACE TX module control board for ASM placement machine

Short Description:

The Brand new SIPLACE TX module is able to operate with maximum accuracy up to 22um@3sigma, achieving speeds of 103.800CPh and mounting ultra-dense spacing of 0201 (mm) components at the highest speed.



The new combination of high accuracy and Genesis speed has a vital relationship with the quality stability of the board.


Product Detail

Product Tags

00373245

03039274

03054790

03073355

03082809

03058629

353445

03060811

03039874 / 00370398

03065247

03039274

03055072

03040460

03041865

Description

ASM mount is a closed working principle. If the quality of the board on the mounter is unstable, As a result, the working head of the mounter cannot return to the reference point, so there is no way to normal production. The equipment can work normally only if the board quality problem is found and repaired at the first time.

Surface-mount technology (SMT) is a method in which the electrical components are mounted directly onto the surface of a printed circuit board (PCB). ... An SMT component is usually smaller than its through-hole counterpart because it has either smaller leads or no leads at all.

An electrical component mounted in this manner is referred to as a surface-mount device (SMD). In industry, this approach has largely replaced the through-hole technology construction method of fitting components, in large part because SMT allows for increased manufacturing automation which reduces cost and improves quality. It also allows for more components to fit on a given area of substrate. Both technologies can be used on the same board, with the through-hole technology often used for components not suitable for surface mounting such as large transformers and heat-sinked power semiconductors.

An SMT component is usually smaller than its through-hole counterpart because it has either smaller leads or no leads at all. It may have short pins or leads of various styles, flat contacts, a matrix of solder balls (BGAs), or terminations on the body of the component.

PCB, also known as printed circuit board, is an important electronic component, the support of electronic components and the carrier of electrical connection of electronic components. Because it is made by electronic printing, it is called "printed" circuit board.
