High Resolution SMD Cutter Auto Machine for PCB Prototype and SMT Assembly

Short Description:

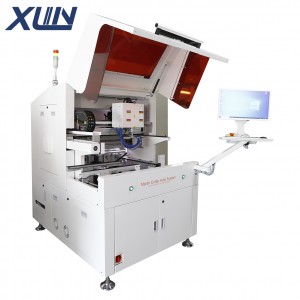

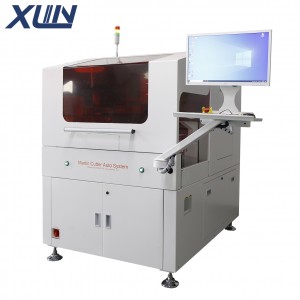

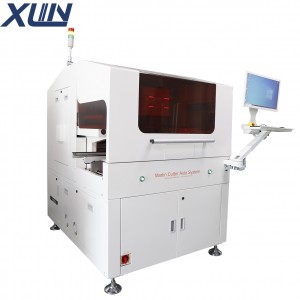

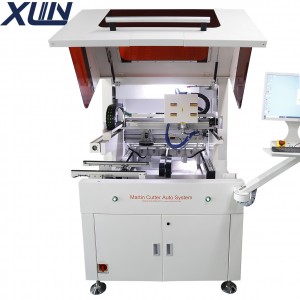

Martin Cutter Auto Machine MT-3500

1. It has an independent Automatically optimize the cutting path;
2. The good PCBA whole board scanning function in the industry has changed the traditional visual guidance;
3. The program can be retrieved directly through the fixture QR code, which is convenient, simple and error free; Intelligent product switching
4. In the cutting process, the error of identification points is recorded in real time;Real time recording of the error of the moving axis;
5. Adjust the cutting depth according to the PCB thickness, improve the utilization rate and save the cost;
6. The cutting procedure shall be combined with the production model and quantity,
7. Automatic retrieval of server data;Upload machine data and production data;Real time monitoring of equipment status.


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Model MT-3500
    PCB Specifications
    Cut dimension 250x330mm
    Cutting speed adjustable 0 ~ 100mm/s
    Main axle rotating speed MAX100000rpm
    Cutting accuracy ± prox0.02mm
    PCB thickness 3.00mm
    Motor drive mode Ac brushless servo motor
    Man-machine operation and data storage PC system
    Components height 25-50mm
    Power Supply 220V 50HZ 1ψ
    Machine Dimension 1750L*1100W*1600H
    Weight Approx 965kgs
