Used Automatic SMT Solder Paste Inspection Machine 3D SPI

Short Description:

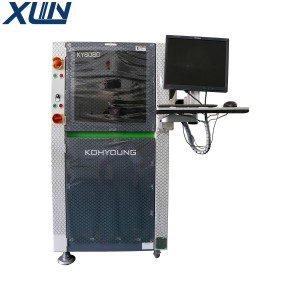

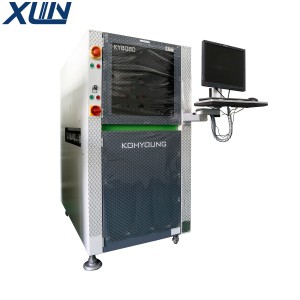

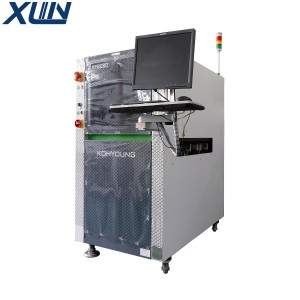

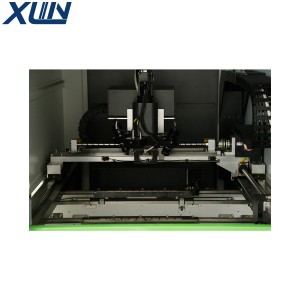

KY8080 SMT Solder Paste Inspection Machine 3D SPI

1. 3D detection can solve the problem of light source shadow
2. Achieve rapid detection in the industry while maintaining high accuracy
3. Easy operation
4. Powerful SPC statistical management
5. The bent PCB affects the reliability of the detection value and is processed in the way of 3D compensation.

  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Model KY8080
    Function High temperature resistance
    Automatic grade Automation
    Machine dimension 800*1335*1627mm
    Board Size Single Lane 50×50 – 350×330mm
    Dual Lane 50×50 – 350×580mm
    Fov Size 36*36mm
    Power 220V,10A
    Weight Single lane:600kgs
    Dual lane: 650kgs
    All pressure 4-6 bar
    Maximum loading PCB size X330*Y350mm
    Certification CE. ISO. RoHS
    Transport Package Standard wooden package
    Measurements: volume,acreage,height, XY offset, shape
    Detection of Non-Performing Types missing print,insufficient tin, excessive tin, bridging, offset, mal-shapes, surface contamination
    Lens Resolution 4.5um/5um/6um/8um/10um/12um/15um/16um/18um/20um
    Accuracy:XY (Resolution) 20um
    Repeatability height:≤1um (3 Sigma);volume/acreage:<1%(3 Sigma)
    Gage R&R <<10%
    Inspection Speed 0.35sec/FOV-0.5sec/FOV
    Mark-point Detection Time 0.3sec/piece
    Maximun Meauring Head ±550um (±1200um as option)
    Maximun Measuring Height of PCB Warp ±5um
    Minimun Pad Spacing 100um
    Minimum element 01005/03015/008004 01005/03015/008004
    Maximun Loading PCB Size(X*Y) 450x500mm(B) 470x500mm (C) 630x686mm
    Equipment repeatability accuracy <10% (5 Sigma)
