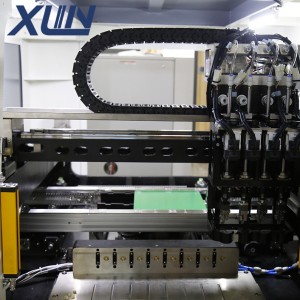

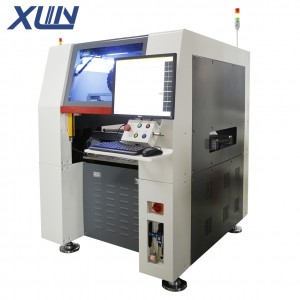

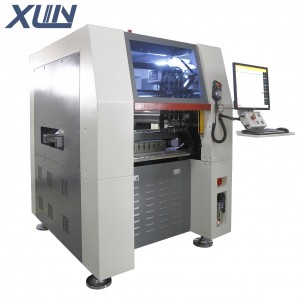

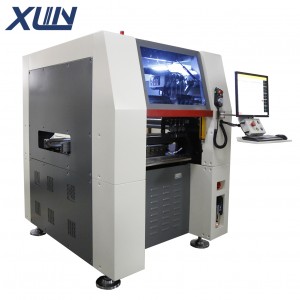

Odd Form 4 Placement Head Plug-in Machine with 50mm Component Width for SMT Assembly

Short Description:


1. It has an independent servo control system to complete the operation performance of high stable plug-in.
It is a high-speed and high-density equipment; Customers can choose the appropriate configuration according to the actual production needs;
The extended component sorting module can be used to optimize the production capacity.
2. Machines with durability, reliability and stability have low failure rate.
3. High performance plug-in head, long tool life, made of solid materials.
4. Online PCB transportation makes production more intelligent and convenient!
The labor cost of the enterprise is saved and the production efficiency is improved
5. High strength welded frame is treated by high-speed vibration aging to eliminate micro deformation of internal stress
6. Imported high-strength precision slide block, ball screw, small gap and wear resistance
7. Imported motion controller, high anti-interference

  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Model SYC4A
    PCB Specifications

    Placement heads 4 pcs
    PCB format L50×W50mm to L450×W450mm
    PCB thickness 0.3×4.5mm2
    PCB weight Approx 5 kgs
    Mounting Accuracy stick insert speed: 0.45-3.0s
    stick accuracy:+/-0.05mm
    Camera sets 5 sets
    Roof structure Asynchronous – Synchronous
    Components height 25-50mm
    Components width 50mm
    Tracks stainless steel chain
    PCB track fixed Jack-up clamping
    Track section 3 sections
    Track adjustment mannual / automatic
    Track height 900+/-30mm/750+/-30mm
    Substrate through height 30-50mm/20mm

    Power Supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
    Air pressure 0.6MPa
    Machine Dimension L1,300 x W1,550 x H1,600mm (Excluding protrusions)
    Weight Approx 2000kgs
