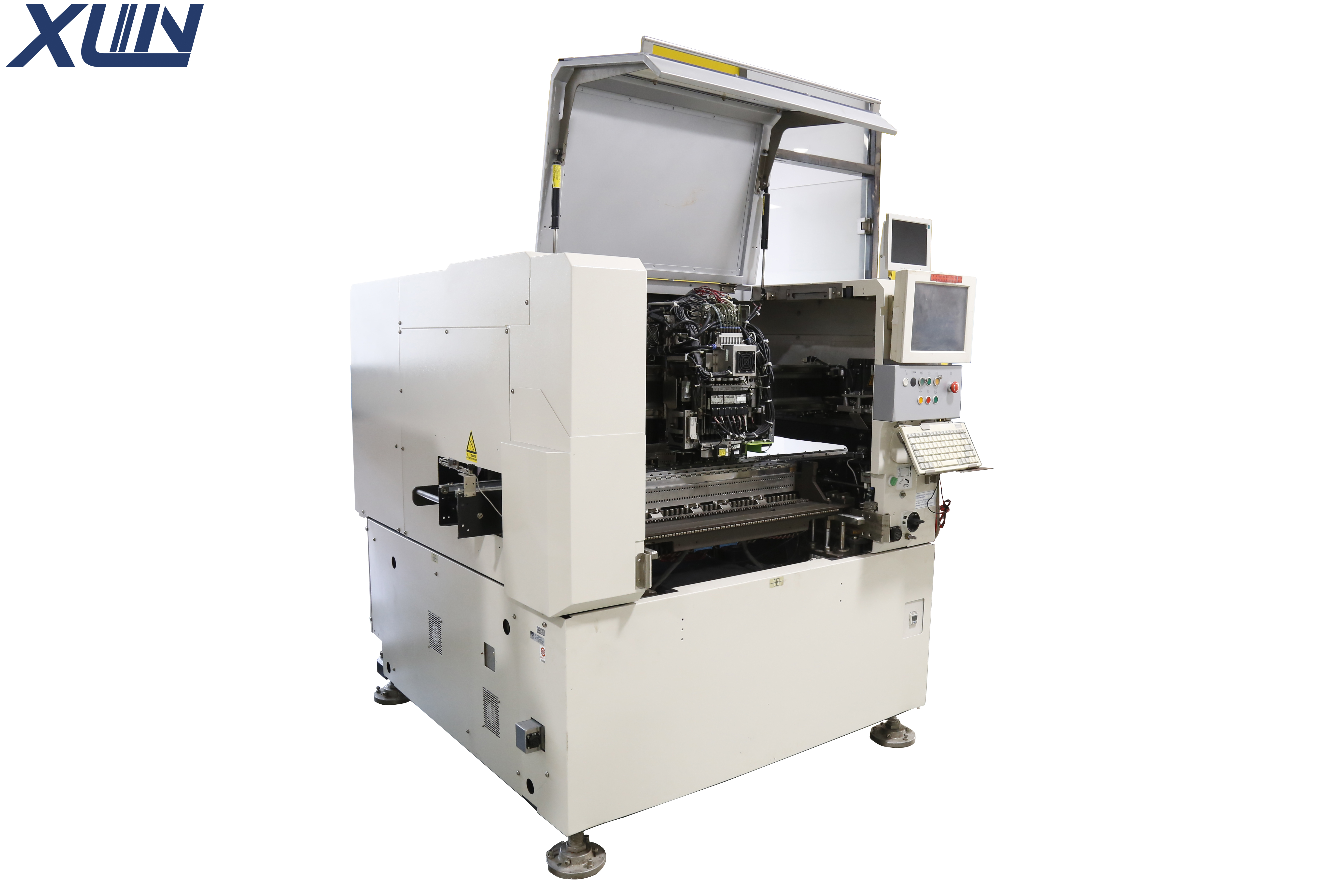

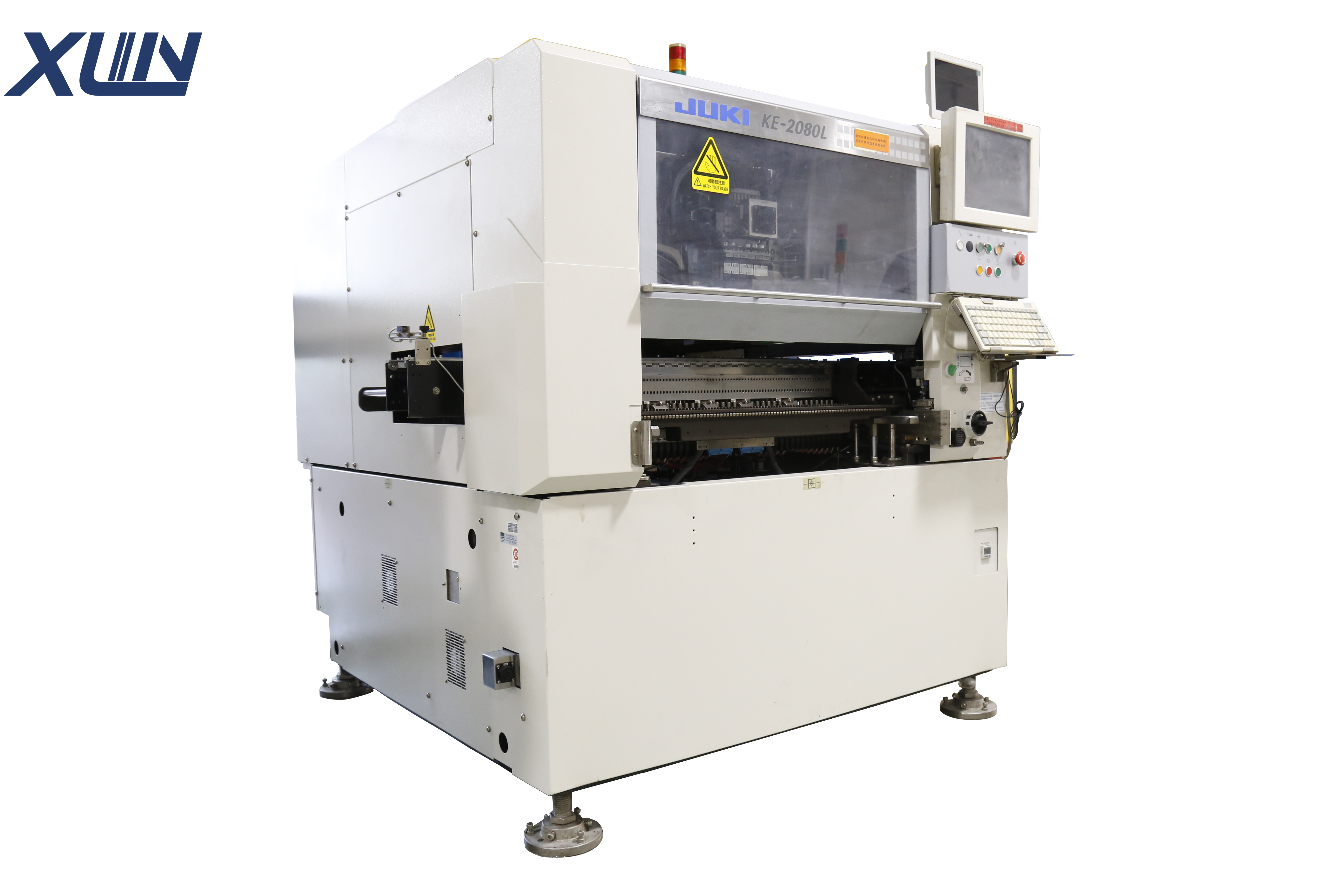

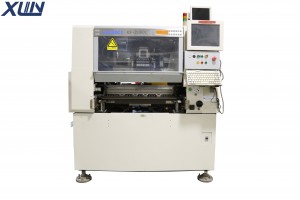

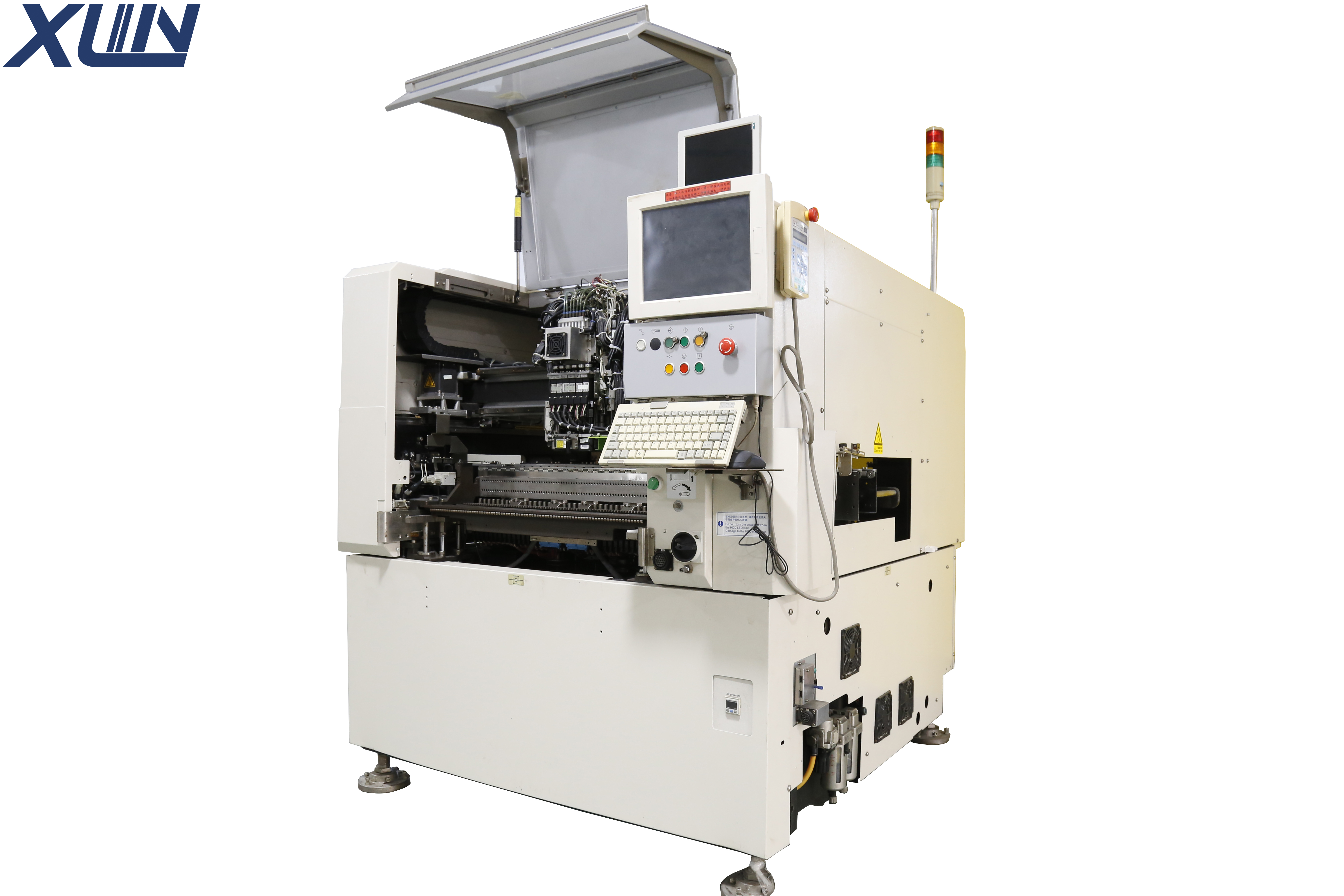

Used PCB Assembly SMT Placement Machine Juki High Speed SMT Mounter Ke-2080L

Short Description:

Juki Mdl KE-2080L PCB pick and place machine, s/n 280-E1521, YOM 2010,: includes optional CSP that will do 10 Mil pitch and Micro-BGA packaging hour meter reading 20040, Head – 7 Shafts (JVS7), unit is in working condition, power 460V/3Ph, No feeders or trollies included, dimensions 72inL by 60inW by 66inH, aprox weight 3200lbs

Product Detail

Product Tags


1. Substrate size: for M substrate (330*250mm)

For L substrate (410*360mm)

For L-Wide substrate (510*360mm)

For E substrate (510*460mm)

2. Component height: 6mm specifications, 12mm specifications, 20mm specifications, 25mm specifications

3. Component size: 0402 (imperial 01005) chip-33.5 square component

4. Component placement speed: 0.178 second chip (20200CPH) 1850CPH IC

5. Component accuracy: 0.05mm

6. Component types: more than 80 kinds (change to 8mm belt)

7. Power supply: three-phase AC200-415V

8. Rated power: 3KVA

9. Use air pressure: 0.5-0.05Mpa

10. Equipment size: 1700*1600*1455mm
11. Weight: about 1,540KG
