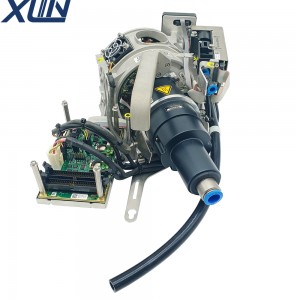

SMT Spare Parts Asm CP20P Placement Head 03091157

Short Description:

The mounting head has the functions of angular rotation, rising and falling, vacuum adsorption and so on. The work flow is that the mounting head turns on the vacuum adsorption and the falling mechanism lowers the mounting head to reach the feeding position of the feeder. After absorbing the components, the mounting head lifts up, completes the photographic image acquisition through the fast camera, then moves to the device position above the PCB, and the mounting head drops to the coordinate position of the PCB device, After the vacuum is closed, the body is strong and the head is raised.


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Various sensor devices are useful to coordinate the working condition of the patch in various tissues attached to the H head. When the function of the mounter is confirmed, the overall structure planning of the mounter becomes the key of the mounter. Mounter is a high-speed moving part. In order to improve the accuracy, it is necessary to reduce its heavy star and volume. Therefore, planning a mounter with complete structure and reading function is also an important link in the planning of mounter.
